TOPGREENER Dimmer Switch with Light Adjustment Slider, Single Pole or 3 Way, 150W LED, 600W Incandescent/Halogen, 120V 60Hz, UL Listed, TGDMDS-120-GD, Gold
Product details
| Management number | 218098916 | Release Date | 2026/05/03 | List Price | $11.20 | Model Number | 218098916 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Create the perfect amount of light levels while utilizing the latest ultra-high and ultra-low technologies with the TOPGREENER TGDMDS. Designed for use with LED lights, this dimmer features a large left to right paddle switch and dimming slider that provides excellent low or high brightness adjustment. The side wheel allows you to adjust your dimmer for use with various dimmable light bulbs.TroubleshootingSymptom 1: Bulbs turn off or flicker while being dimmedSolution a.Verify all bulbs are marked dimmableb.The lighting fixture is not compatible with our dimmerc.Most dimmable LEDs and CFLs will not acheive as low level as incandescent or halogen sources. d.Control a group of lighting fixtures/lamps with one dimmer may cause flicker due to variation of dimming circuit and dimming range. Please use dimmer to control lights/lamps in the same type or same model. Symptom 2: Bulbs do not turn on at a low light level, or take too long to turn on at low end,Bulbs flicker when dimmed to a low light levelSolution1.Remove wallplate and locate adjustment dial2.Turn up (clockwise) adjustment dial slowly until symptom is no longer present3.Install wallplate once all bulbs are dimming properly. ABOUT US: Top greener Inc. is a U.S. based high-tech electrical company. We dedicate ourselves to providing smart home and commercial solutions to our customers to meet their energy-saving and lighting control needs. Our team specializes in the design and production of quality lighting controls, wiring devices, wireless home automation, and solutions in smart energy management. All products sold by Top Greener are held to stringent quality control standards and backed by a one-year warranty.
- Dimming Solution: does not require a neutral wire and can be installed in all homes with standard electrical wiring.
- 3-Way Application: can be used in both single-pole and 3-way applications and with 3-way switches
- Compatibility: For use with dimmable LED light bulbs at 150W, Incandescent/Halogen lighting at 600W

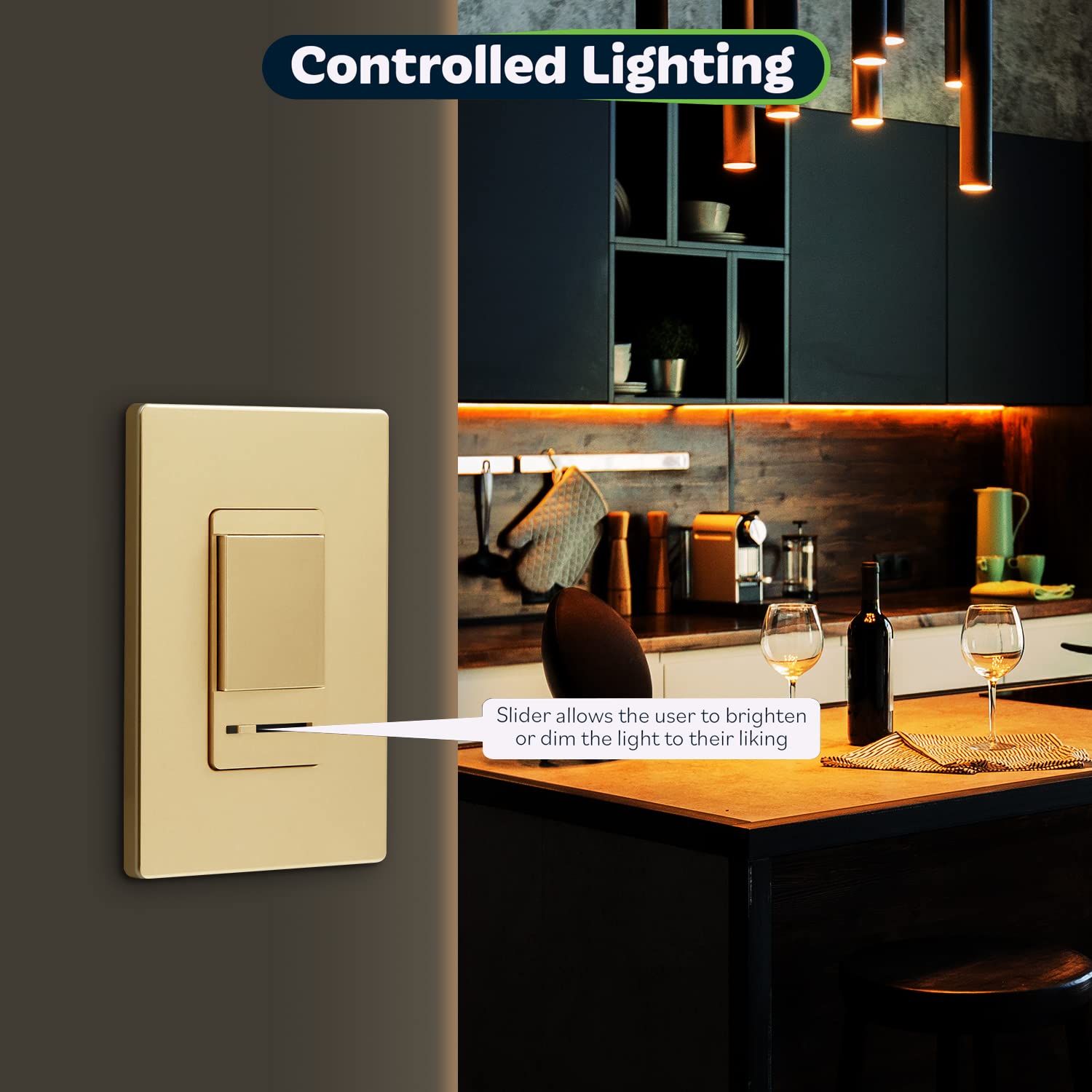

- Adjustable: Discreet slider for precise dimming. Also features a side wheel for adjusting the dimmer with various name brand bulbs.
- Specifications: 120VAC at 60Hz, UL Listed, wall plate sold separately
| UPC | 883951456375 |
|---|---|
| Color | Gold |
| Model | TGDMDS-120-GD |
| Wattage | 600 watts |
| Terminal | Spst |
| Brand Name | TOPGREENER |
| Unit Count | 1.0 Count |
| Part Number | TGDMDS-120-GD |
| Switch Type | TRIAC |
| Circuit Type | 3-way |
| Contact Type | Normally Open |
| Control Type | Manual |
| Manufacturer | Top Greener Inc. |
| Actuator Type | Paddle |
| Material Type | Polycarbonate Thermoplastic |
| Mounting Type | Wall Mount |
| Connector Type | Wire Leads |
| Control Method | App |
| Current Rating | 15 Amps |
| Operation Mode | ON-OFF-ON |
| Item Dimensions | 5 x 3 x 2.25 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 120 Volts |
| Specification Met | UL |
| Compatible Devices | Dimmable LED, Incandescent, Halogen bulbs |
| Included Components | TGDMDS-120-GD |
| Number of Positions | 1 |
| Connectivity Protocol | X-10 |
| Lower Temperature Rating | 31 Degrees Fahrenheit |
| Smart Home Compatibility | Not Smart Home Compatible |
| Upper Temperature Rating | 104 Degrees Fahrenheit |
| International Protection Rating | IP60 |
