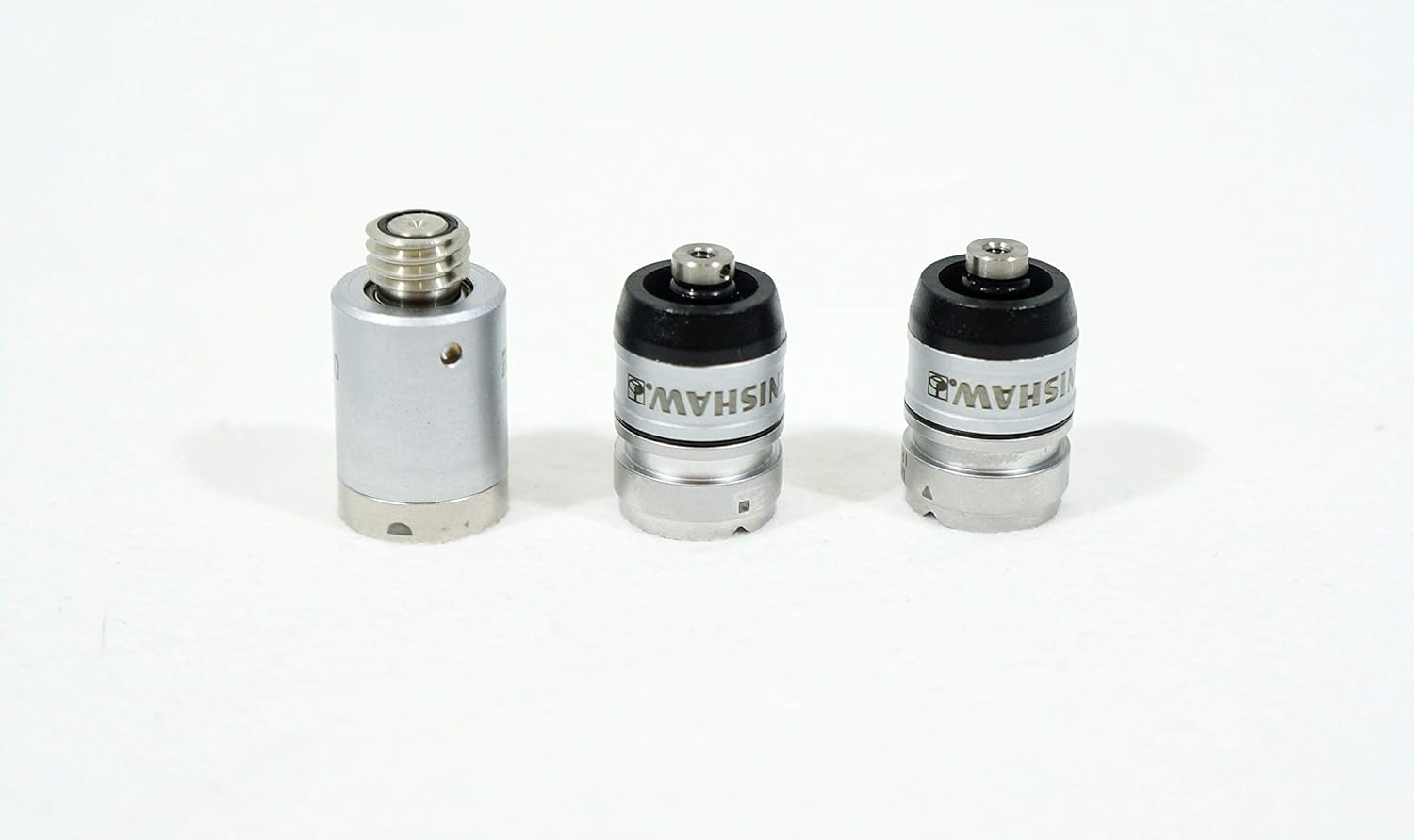

Renishaw TP20 Probe Kit 1 New in Box with 1 Year Warranty

TP20 Compact module changing touch-trigger probe, which allows the use of a range of stylus configurations and extensions to access features on complex parts. Modules can be changed manually or automatically without the need for requalification of the stylus tip. The TP20 is a compact 5-way, or 6-way, kinematic touch-trigger probe system. The two-piece design, comprising probe body and detachable stylus module(s), connected using a highly repeatable magnetic kinematic coupling. This provides the facility to change stylus configurations either manually or automatically without the need for requalification of the stylus tips, thereby giving significant time savings in inspection routines. Modules offering a range of trigger forces allow the probe performance to be best matched to the measurement task. A set of probe extensions is also available, as is a 6-way module. The stylus mounting thread accepts styli from the Renishaw M2 range. The TP20 system is easily retrofitted and is compatible with existing touch-trigger probe interfaces, extensions and adaptors. The system components are: TP20 probe body TP20 probe module - seven variants allow optimisation to suit application MCR20 or TCR20 module changing rack - automatic operation MSR1 module storage rack - manual operation Suitable for interfacing with Renishaw's PI 7-3, PI 200-3 and UCC controllers The standard force probe module, identified by a black cap, is suited to the majority of applications requiring extensions up to 50 mm long. The standard force probe module can be used with the following range of styli: Straight styli up to 50 mm long. Star and cranked styli up to 20 mm offset.

• THIS KIT INCLUDES: 1 TP20 Body & 2 TP20 Standard Force Modules
