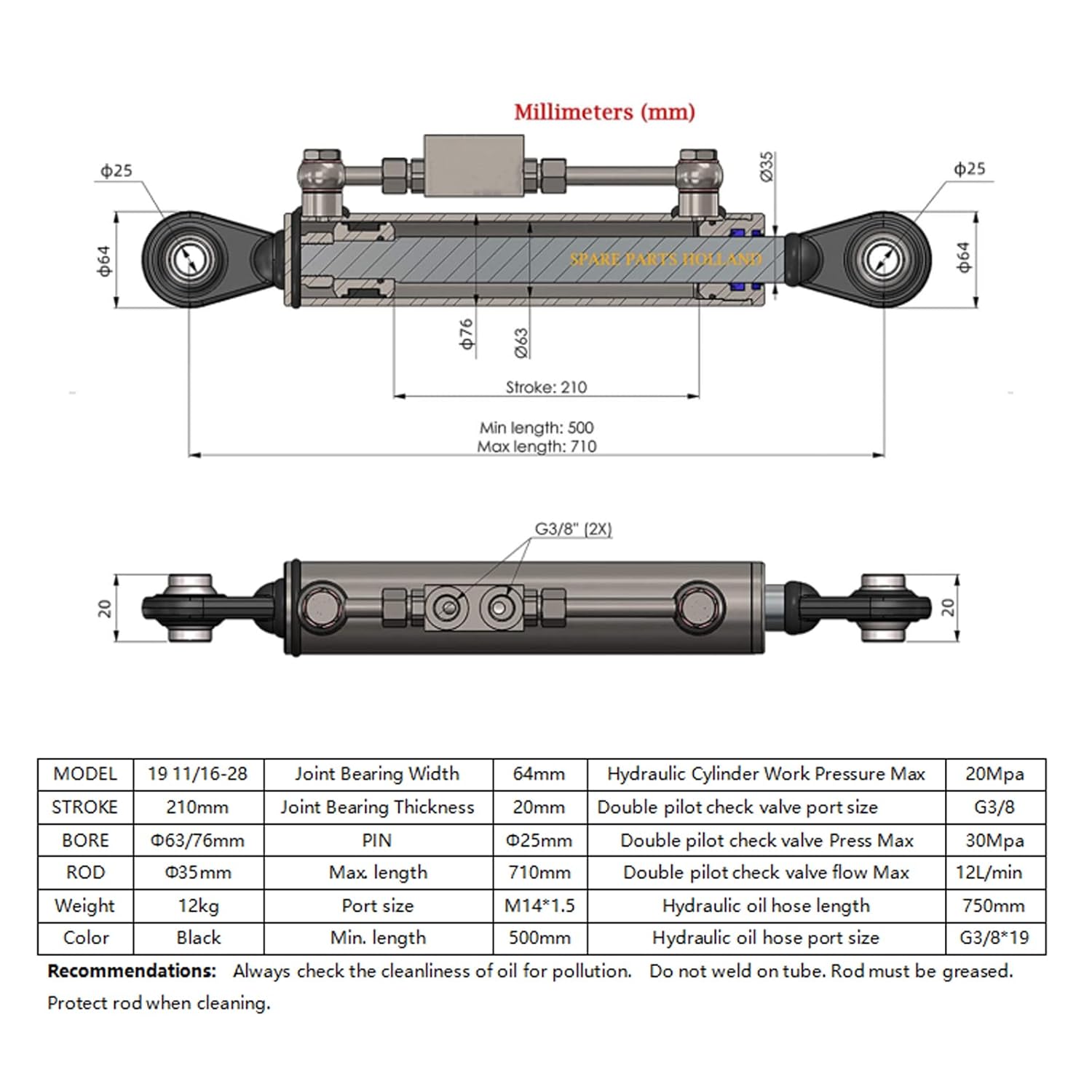

Hydraulic Top Link Cat 2-2, 20Mpa Double-Acting Hydraulic Cylinder with Locking Block 19 11/16-28” with 2 x Hose, Hydraulic Top Link for Tractor, Excavator (5511Lbs Pull &7716Lbs Thrust)
$162.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.ayudapsicologicaecuador.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$162.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.ayudapsicologicaecuador.com
Free 30-day returns Details
Product details
| Management number | 214818577 | Release Date | 2026/04/12 | List Price | $65.20 | Model Number | 214818577 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 🚜【Two-Way Design】It is equipped with a two-way check valve, which can complete retraction and extension. The valve allows free flow in one direction, and the pressure drop is relatively small. In the opposite direction, it is usually closed, and the valve can be opened only when there is pilot pressure from another oil circuit.
- 🚜【Excellent Performance】Its high-strength steel piston, precision threaded gland with wear ring, polished hard chrome plated rod, and high tensile welded steel base ends enable our hydraulic cylinder to be suitable for various heavy applications and can withstand exxtreme weather.
- 🚜【20Mpa Hydraulic Power】The double-acting hydraulic cylinder can exert linear motion and force through the hydraulic system(maximum working pressure of 20Mpa), without the need for mechanical gear or lever to generate 5511lbs pull force and 7716lbs thrust force. So, it can achieve maximum performance even under heavy loads.
- 🚜【Good Sealing】The piston adopts a high-quality five-component compact seal for excellent performance, and the rod adopts a standard U-cup polyurethane rod seal with inner O-ring, POM-C wear rings, and polyurethane wiper to ensure excellent sealing performance, which is helpful to solve the problems of oil evaporation, air leakage, and piston blockage.
- 🚜【Application】It can be directly mounted on tractors, excavators and Class 1 and 2 equipment and is widely used in waste, recycling, construction, transportation, agriculture, material treatment and other industries.
| Item Weight | 28.9 pounds |
|---|---|
| Manufacturer | Aongslank |
