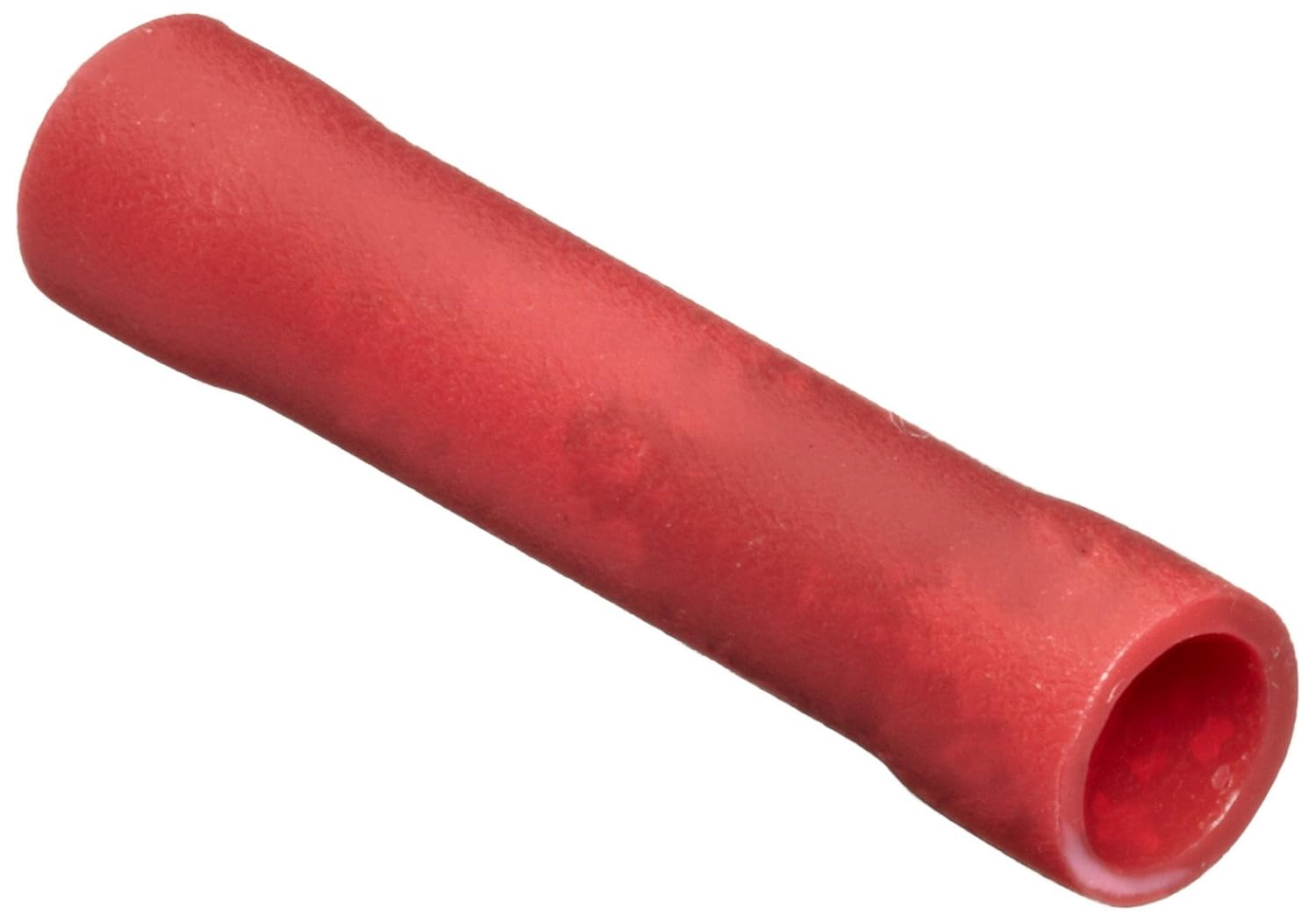

12130 Vinyl Insulated Butt Splice Connectors 6, 500-Pack
Product details
| Management number | 216215686 | Release Date | 2026/04/19 | List Price | $340.60 | Model Number | 216215686 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Easy Entry Expanded Insulation eliminates strand “Hang Up”, increasing crimping rates and provides mechanical strain relief. Maximum Electric Current: 26 AWG - 5.5 Amp, 24 AWG - 7 Amp, 22 AWG - 9 Amp, 20 AWG - 12 Amp, 18 AWG - 17 Amp, 16 AWG - 18 Amp, 14 AWG - 30 Amp, 12 AWG - 35 Amp, 10 AWG - 50 Amp, 8 AWG - 70 Amp, 6 AWG - 95 Amp, 4 AWG - 125 Amp, 2 AWG - 170 Amp. 167°F(75°C) 600 Volts Max. cULus Listed.
- Vinyl Insulated Butt Splice Connectors - Restock your Vinyl Insulated Butt Splice Connectors with us.
- Vinyl Insulated Butt Splice Connector Material: High Strength Electrolytic Copper Plate or Tubular Copper
- Electro-Tin Plated for corrosion resistance
- Vinyl Insulated Butt Splice Connectors has Center Wire Stop Barrier
- Color Coded Insulation for easy identification
| Color | Blue |
|---|---|
| Gauge | 6.0 |
| Model | 12130 |
| Terminal | Butt Terminal |
| Brand Name | Morris Products |
| Unit Count | 500.0 Count |
| Manufacturer | Morris Products |
| Material Type | Copper |
| Connector Type | Butt Splice |
| Maximum Voltage | 600 Volts |
| Contact Material | Copper |
| Specification Met | UL |
| Temperature Rating | 167 degree fahrenheit |
| Included Components | 6 Vinyl Butt Connectors |
| Insulation Material Type | Polyvinyl Chloride |
| Global Trade Identification Number | 20601986121303 |
